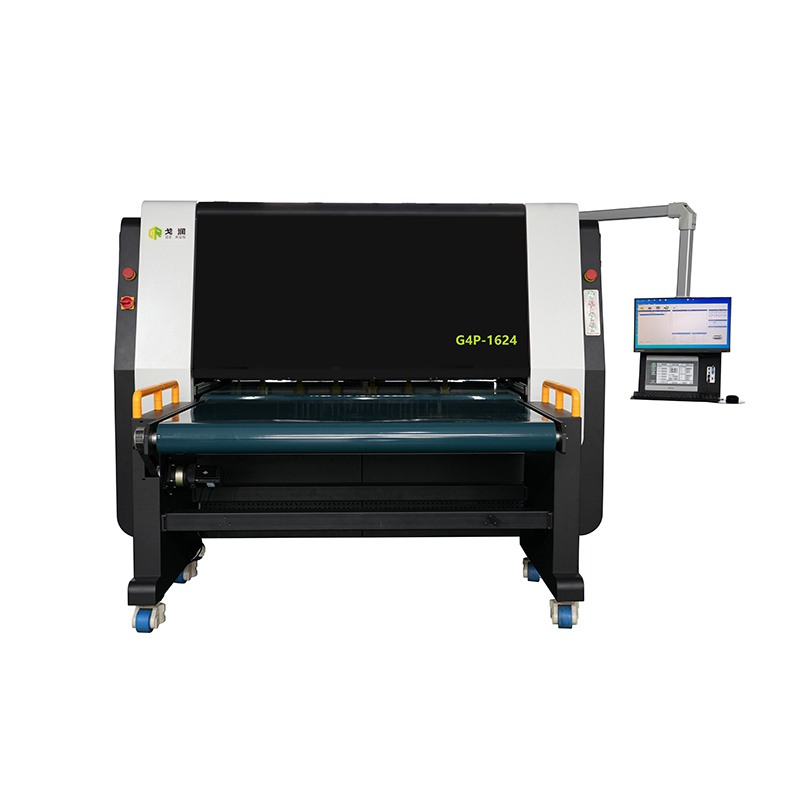

Smartloong Series Single-pass

SmartloongSeriesSingle-pass

HighResolution

HighSpeed

HighProduction

LowInvestmentWithHighRepay

1200DPImono

1.6m/smaximum

Availability:

Smartloong Series Single-pass

1716349669125407

High precision and high quality
High speed and high productivity
Big Return on investment
High Resolution
High Speed High Production
 Low Investment With High Repay
Monochrome 1200DPI  mono
Highest 1.6m/s  maximum
Smart body with monochrome nozzle
Four colors are optional 600DPI Quad (* Optional)
 Rough estimate of daily output squared20,000-30,000 sqm/day production (*est)
Recommended mono printhead with smart body




Compact and dexterous
Quick reflexes
Powerful
Wide Adaptability
Compact Smart
Quick Reactions
Powerful Functions
 Wide Adaptability
Compressed space, maximization of adaptation to the site, easy to use
Quick start-up response, more convenient to change a single
Variable data, ERP connection, one-click scan code, etc.
Single color scheme is economical and economical; give consideration to multi-color
Minimized occupation in land, easy to adapt factory sites
Fast start-up speed, quick switching orders
Variable data, ERP connection, one-click QR code scanning for system work
Optional monochrome scheme is economical and multi-color for wide adaptability






Sireis

Honor Singlepass

Smartloong Singlepass

Honor Progressive

Typical Models

GR1818

GR1824

G4P-1624

G4P-S1624

GR2508P

Print Head (Ref.)

I3200

I3200

I3200

I1600

I3200

No.s of Print Head

18

24

24

24

8

Feeding Mode

Front edge full smart

synthetic feeding

Multi servo front edge

smart feeding

Servo front edge

feeding

 Max. Printing Speed

1.6m/s (300*600 DPI)

0.85m/s 600*600 DPI)

0.5m/s (900*600 DPI)

1.6m/s (300*1200 DPI)

0.85m/s 600*1200 DPI)

0.5m/s (900*1200 DPI)

700m2/h

 Max. Printing Width

600mm

800mm

2480mm

 Media Thickness

1~20mm (can be customized)

Max. Feeding Width

1800mm

1600mm

2500mm

Feeding Mode

Auto feeding

Operating System

Windows 7 or Later Version

 Working Environment

1830  humidity50%70%

Rip Software Rip

Maintop

Picture Format

TIFF,JPG,PDF,PNG

Ink type and color

CMYK Water Based Ink

Electric voltage

380V±10% 50/60HZ

Total Power

about30KW appx.

about20 KW appx.

about18KW appx.

Printer size(L*W*H)

6800*5160*1980mm

2660*5400*1880mm

4420*3350*1720mm

Printer weight

about4500kg appx.

about1800kg appx.

about2500kg appx.
