| Product Name: | Cardboard Carton Box Digital Printing Machine-WEP-2506AF | Rip Software Rip: | Maintop |
| Picture Format: | TIFF,JPG,PDF,PNG | Print Head: | EPSON Industrial ALL-MEMS Print Head |
| No.S Of Print Head: | 6 | Max. Printing Width: | 2480mm |
| Media Thickness: | 1-20mm | Max. Printing Speed: | 550m²/h |
| Printingresolution: | ≥360DPI*600DPI |
|
|
| High Light: | carton box printer,carton printer machine,Inkjet Carton Printer 600DPI |

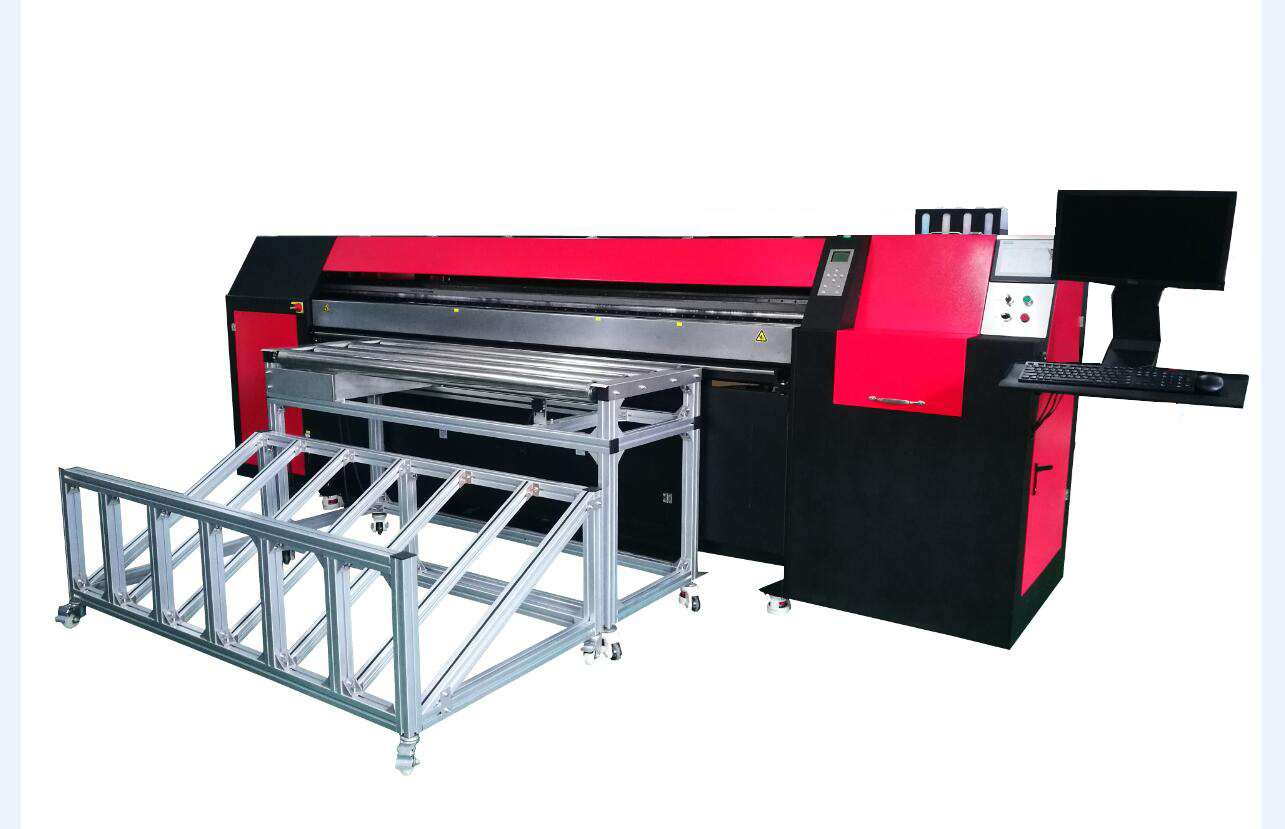

Box Inkjet Carton Printer Machine 600DPI
1. Description
The pressure roller design better facilitates flattening of hard cardboard.
The printing speed of this series of WEP+Series Progressive Type Main can reach up to 550m²/h, printing accuracy is greater than or equals to 360DPI*600DPI
Smart-Short waiting period for 1st printing after turn on the power by smart system
Swift smoothly-immedite order switch in short waiting time and less manpower required.
2.PARAMETERS
| Name | Box Inkjet Carton Printer Machine WEP-2506AF |
| Rip Software Rip | Maintop |
| Picture Format | TIFF,JPG,PDF,PNG |
| Print Head | EPSON Industrial ALL-MEMS Print Head |
| No.s of Print Head | 6 |
| Ink type and color | CMYK Water Based Ink |
| Max. Printing Width | 2480mm |
| Media Thickness | 1~20mm |
| Max. Printing Speed | 550m²/h |
| Min. Feeding Width | 350mm*450mm without scoring, 350mm*660mm with scoring |
| Max. Feeding Width | 2500*1500mm |
| Printingresolution | ≥360DPI*600DPI |
| Feeding Mode | Auto feeding |
| Operating System | Windows 7 or Later Version |
| Working Environment | 18～30℃, humidity: 50%～70% |
| Electric voltage | 220V±10% 50/60HZ |
| Total Power | 4700W |
| Printer size(L*W*H) | 4200*3500*1580mm |
| Printer weight | 2100kgs |
3. Features
Intelligent sensor system actualizes automatically feeding, saves cost by reducing manual force. Press roll transimission associated air suction platform makes material flat and stable to guarantee the printing quality.Using Epson micro piezoelectric nozzle to make high quality printing.
Siemens PLC control system, ensure the accuracy of material transfer in the printing process.
Japanese Panasonic high precision servo motor ensure the printer output stable and a longer service life
Dell Industrial computer, anti-interference, printing dada been transfered more smoothly
Japanese Omron photoelectric sensor makes the cardboard positioning more precise and stable transmission.
